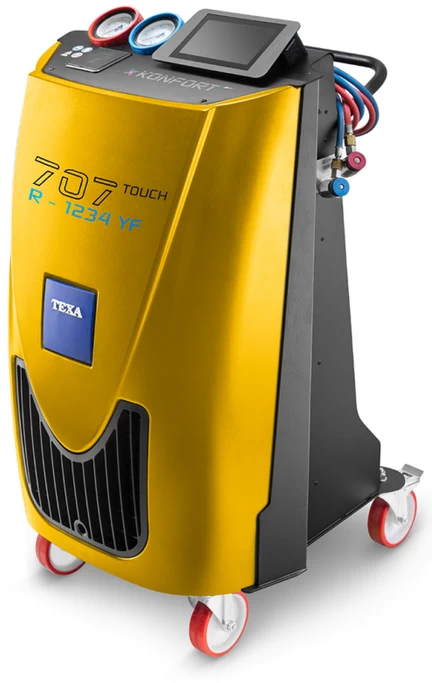

Essential and simple to operate, it nevertheless incorporates all the latest design solutions. Its main features: a dryer filter that allows performing up to 300 maintenance services; scale locking system; alphanumeric keyboard; 4 castor wheels; and a maintenance log with data on all services completed.
Display: 7” TFT IPS 1024×600 400CD
GPU: Qualcomm© Adreno™ 308 Graphics Processing Unit (GPU) with 64-bit addressing
Touch: Capacitive touch panel, USB/12C interface
CPU:
SC200R Series Snapdragon QCM2150 Quad-core
ARM Cortex-A53 64-bit CPU @ 1.3 Ghz
STM32F103 – ARM Cortex M3 32-bit CPU
RAM: 2 GB LPDDR3
Hard disk: 16 GB eMMC
Operating system: Android 10.0
Audio peripheral: devices 1 speaker CES-703116-28PM 8ohm 2W
Wi-Fi:
802.11a/b/g/n, 150 Mbps, STA/AP/P2P
2402-2480 MHz
5 Ghz
Bluetooth:
2.1+EDR/3.0/4.1 LE/4.2 BLE
2400-2483,5 MHz
RF power: 20 dBm
I/O peripheral: devices USB 2.0 x1
Primary battery: 3 V CR2032
Secondary battery: NiMh 2,4 V – 600 mAh
Fluid / Group:
RR1234yf / 1
Electronic refrigerant scale (Precision) [g]: ± 10
Electronic oil and UV tracer scales (Resolution) [g]: —
Pressure transducer: Kl. 1.0
High pressure gauge [mm]: Ø 80
Low pressure gauge [mm]: Ø 80
Tank capacity [kg]: 10
Service pipes’ length [m]: 3
Filter assembly: 1 combined filter + mechanical filter
Compressor (airtight) [cc]: 12
Vacuum pump: 100 l/m, double stage, final pressure 0,05 mbar
Ambient temperature sensor (Resolution) [°C]: 1
Refrigerant purity [kg]: 150 (SAE J2099)
Recovery efficiency: > 95 % (SAE J2788 / SAE J2843)
Maximum operating pressure (PS) [bar]: 20
Safety device calibration [bar]: 20
Power supply voltage [V]: 230
Frequency (Hz): 50 (50/60)
Power [W]: 770
Operation temperature (TS) [°C]: 5 ÷ 40
Storing temperature [°C]: – 25 ÷ 60
Dimensions [mm]:
H: 1095
L: 598
P: 706
Weight [kg]: 75
